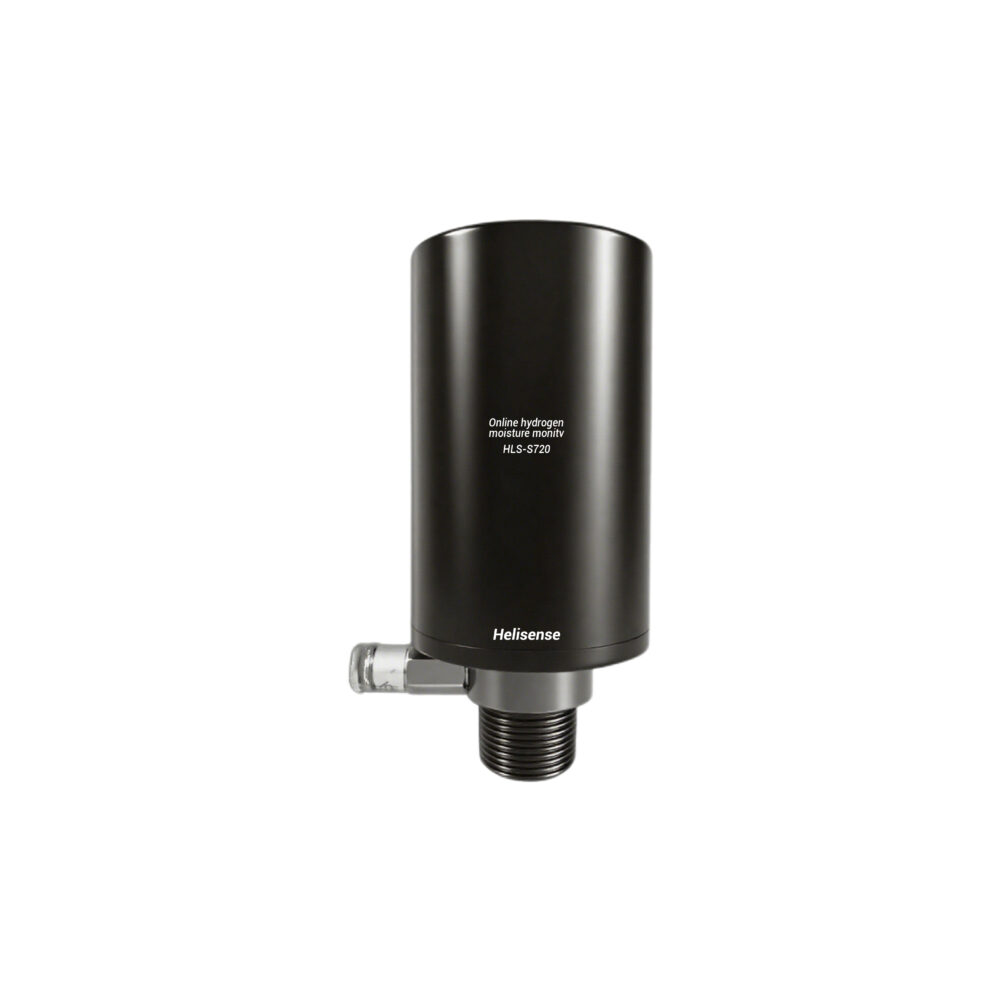

Suitable for applications in low dew point industrial dryers, meeting nearly all measurement requirements
Equipped with an advanced dew point sensor featuring on-site self-calibration function
Oil-resistant / anti-pollution
Low dew point, long-term stability, and compliance with international standards
Fast response time
IP65 (NEMA 4) enclosure for protection against dust, dirt, and water splashes
Can be directly installed in pipelines with a pressure of up to 20 bar
-
Technical Specifications
Range: -80~+20℃
Relative humidity: 0~98%RH
Response time: +20→-20℃ Td 5s[45s]; -20→-80℃ Td 10s[240s]
Accuracy: ±1℃
Repeatability: ±1℃
Sample gas flow rate: 200~300mL/min
Operating temperature: -30℃~+60℃
Operating pressure: 0~1.0Mpa
Signal output: 4~20mA (corresponding to -80~+20℃), ±0.05mA, 300Ω
Sensor power supply: 24VDC
Explosion-proof grade: Exd II C T6 Gb
Display: Remote liquid crystal display
Alarm output: Relay contact output (two-level setting of high alarm and low alarm)
Power supply: 220VAC±10% 50Hz (or DC24V), power 10W
Measuring unit: Inlet and outlet connection method: Φ1/4 stainless steel pipe ferrule connection
Relative humidity: 0~98%RH
Response time: +20→-20℃ Td 5s[45s]; -20→-80℃ Td 10s[240s]
Accuracy: ±1℃
Repeatability: ±1℃
Sample gas flow rate: 200~300mL/min
Operating temperature: -30℃~+60℃
Operating pressure: 0~1.0Mpa
Signal output: 4~20mA (corresponding to -80~+20℃), ±0.05mA, 300Ω
Sensor power supply: 24VDC
Explosion-proof grade: Exd II C T6 Gb
Display: Remote liquid crystal display
Alarm output: Relay contact output (two-level setting of high alarm and low alarm)
Power supply: 220VAC±10% 50Hz (or DC24V), power 10W
Measuring unit: Inlet and outlet connection method: Φ1/4 stainless steel pipe ferrule connection
