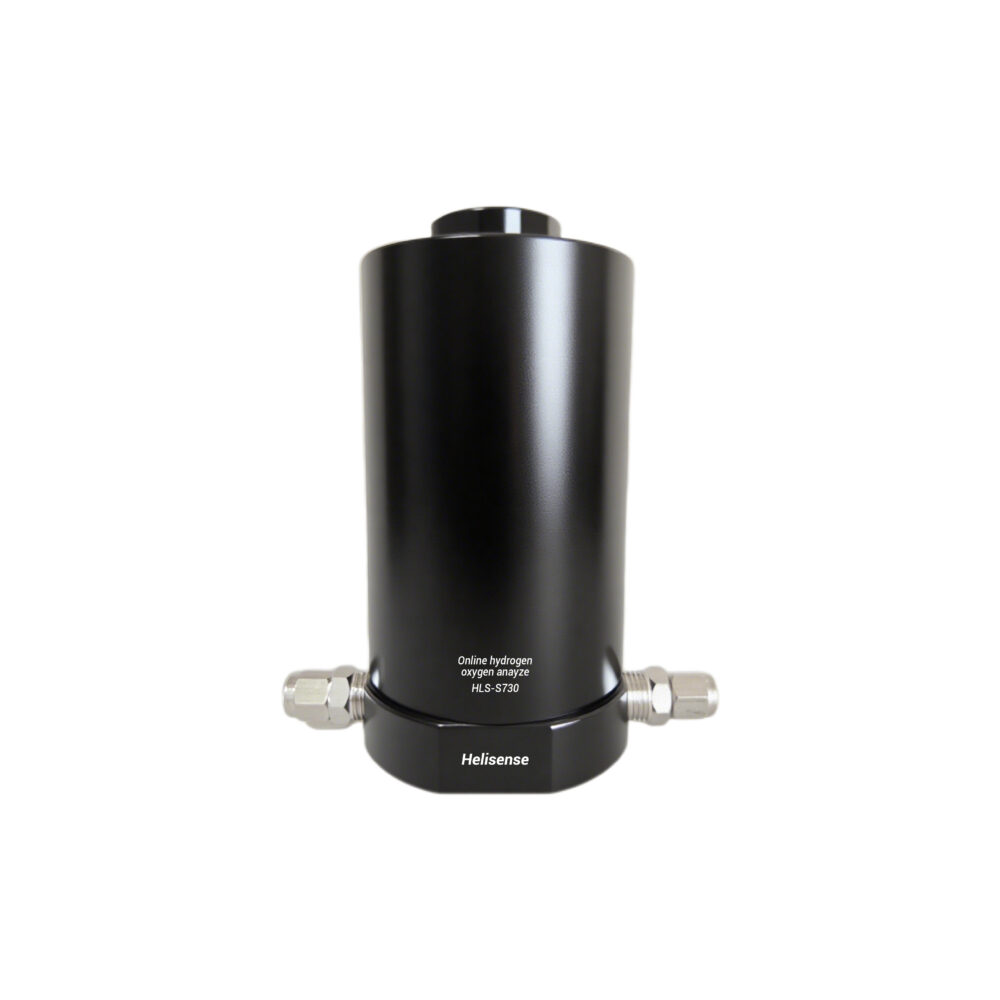

Online hydrogen oxygen oxygen analyzer HLS-S730

Online hydrogen oxygen oxygen analyzer HLS-S730

$12,988.00

I. Main Features

● Adopts a constant temperature sensor with temperature compensation function
● Liquid crystal display with Chinese menu, easy to maintain
● Provides multiple signal outputs
● Users can perform on-site calibration to ensure reliable on-site use
● Supports gas preprocessing function
● Gas pressure stabilization and flow regulation indication

ENQUIRY!
Category:
This online hydrogen-in-oxygen analyzer features high sensitivity, simple operation, excellent sensor stability, and little influence from temperature, flow rate and pressure.
Recommended applications: hydrogen production stations, petroleum processing, synthetic ammonia industry, metallurgical industry, electronic industry.

  • Technical Specifications


Sensor: Constant temperature sensor with temperature compensation
Measurement range: 0～2% or customized
Typical accuracy: ±0.01%
Repeatability: ±0.01%
Sample gas flow rate: 200～300mL/min
Response speed: 10～15 seconds
Operating temperature: -20℃～50℃
Operating pressure: ≤1.0MPa
Signal output: 4～20mA (0～2% or customized), ±0.05mA 300Ω
Display: LCD remote display
Alarm output: 2 channels of alarm dry contact output. Factory default settings: Alarm 1 high alarm (alarm value 2.0%), Alarm 2 low alarm (alarm value 0.0%)
Power supply: DC24V, power consumption ≤3W
Inlet and outlet gas connection: Φ6, stainless steel pipe
